Input/Output Modules
Product Description

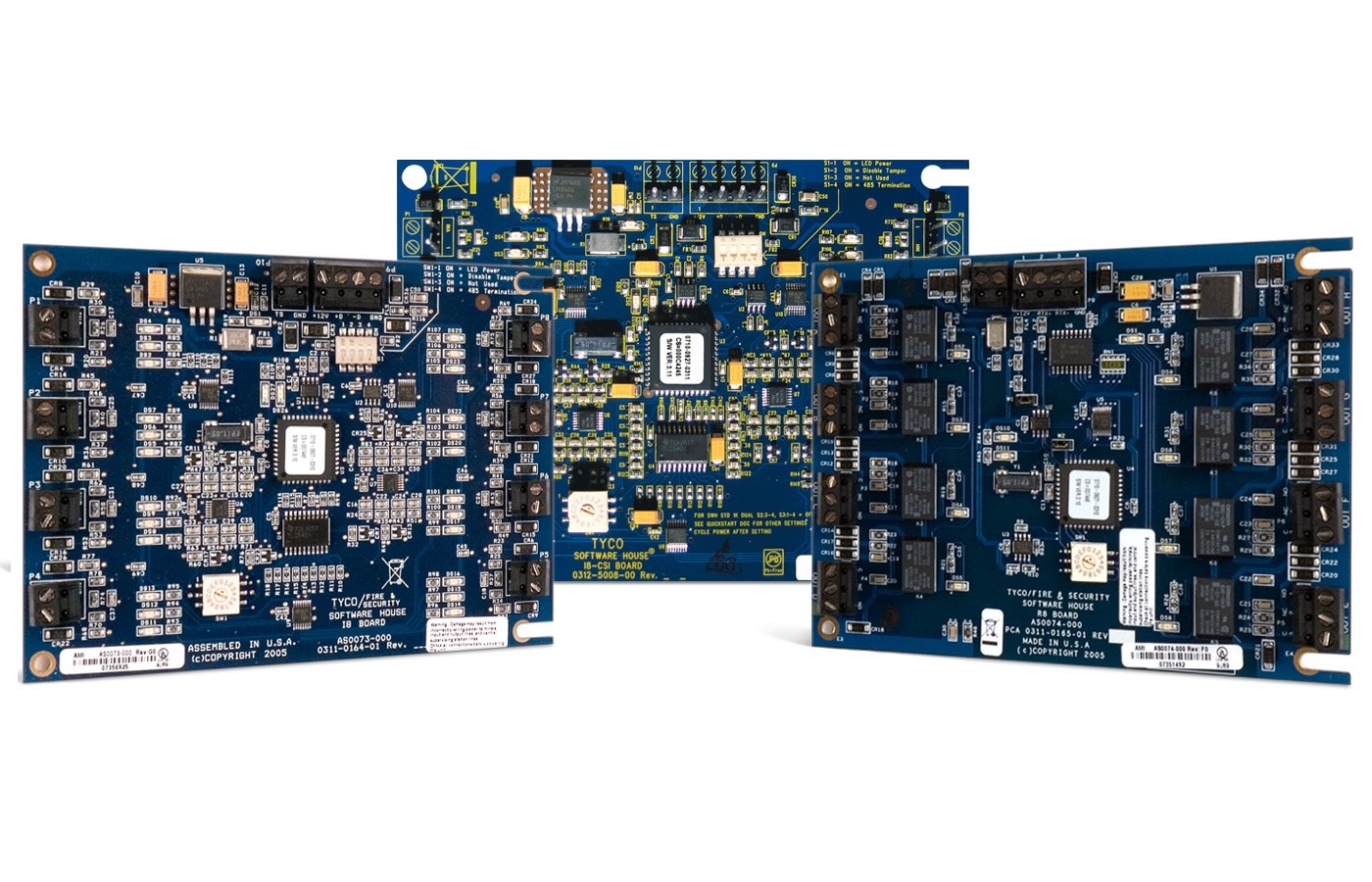

The Software House input/output modules (I8, R8, and I8-CSI) provide a flexible, cost-effective means to expand the input and output functionality of any iSTAR or apC door controller. Common applications include alarm monitoring and control, and elevator control. The I8 input module provides eight Class A supervised inputs. Three LEDs per input help the installer commission and troubleshoot each input circuit. The R8 output module provides eight Form C dry contact relay outputs. A red status LED per output shows the state of the relay. The I8-CSI module enhances the functionality of the standard I8 module by supporting numerous supervised circuit types and EOL resistance values. This allows the I8-CSI to accommodate existing field wiring without changing EOL resistors. More than 20 different circuit types are supported.
Please Note:
60 – 90 days delivery time
50% Advance payment required
Full Warranty Coverage
Yearly Service Level Agreement
- Provides cost-effective expansion of input and output capacity
- Compatible with full range of Software House iSTAR and apC access control panels
- Locate modules up to 1,220 m (4,000 ft) away from controllers using flexible two-wire RS-485 RM bus
- Reduces length of sensor and control wiring to save installation costs

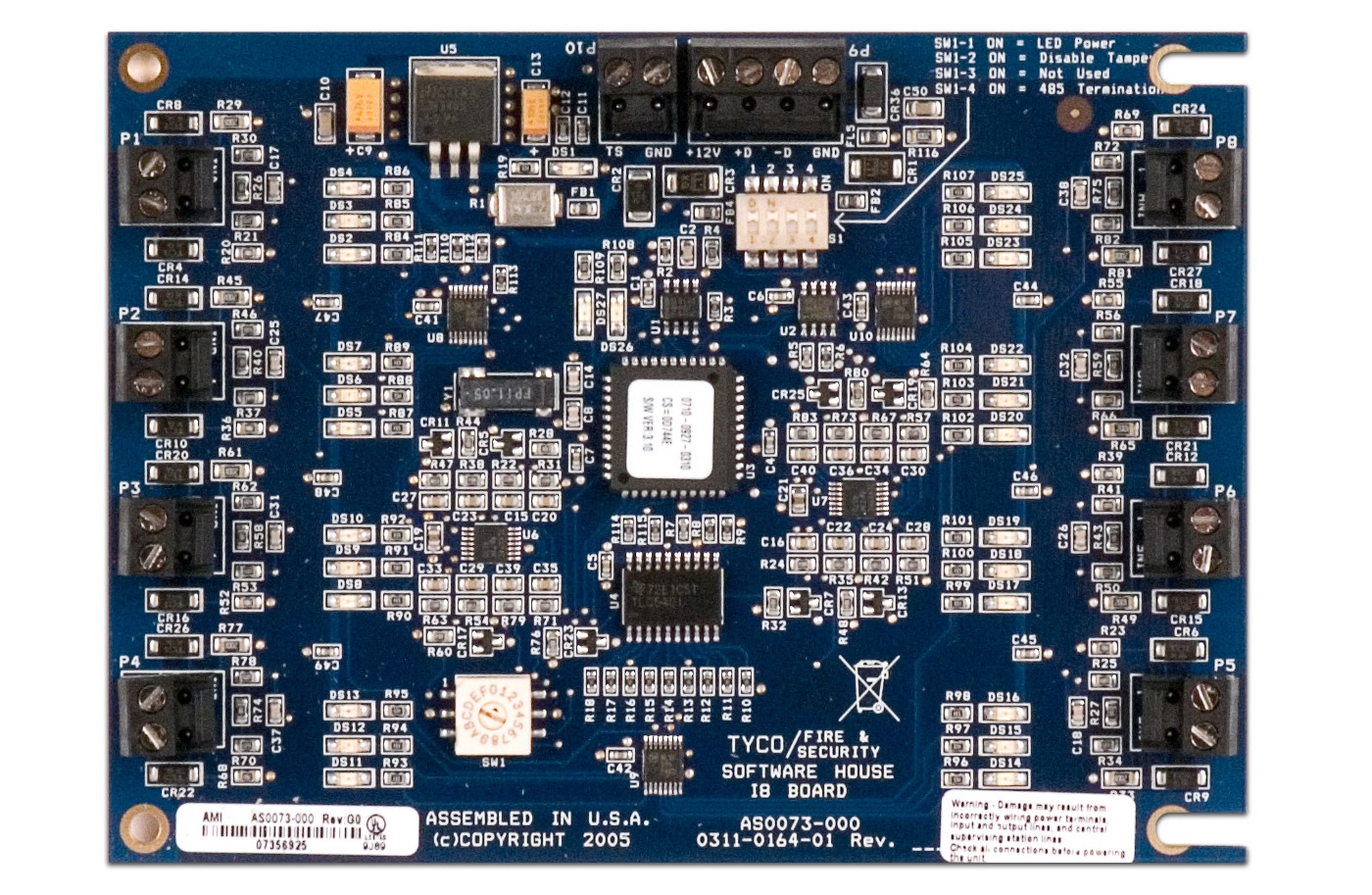

- I8 provides eight Class A supervised inputs

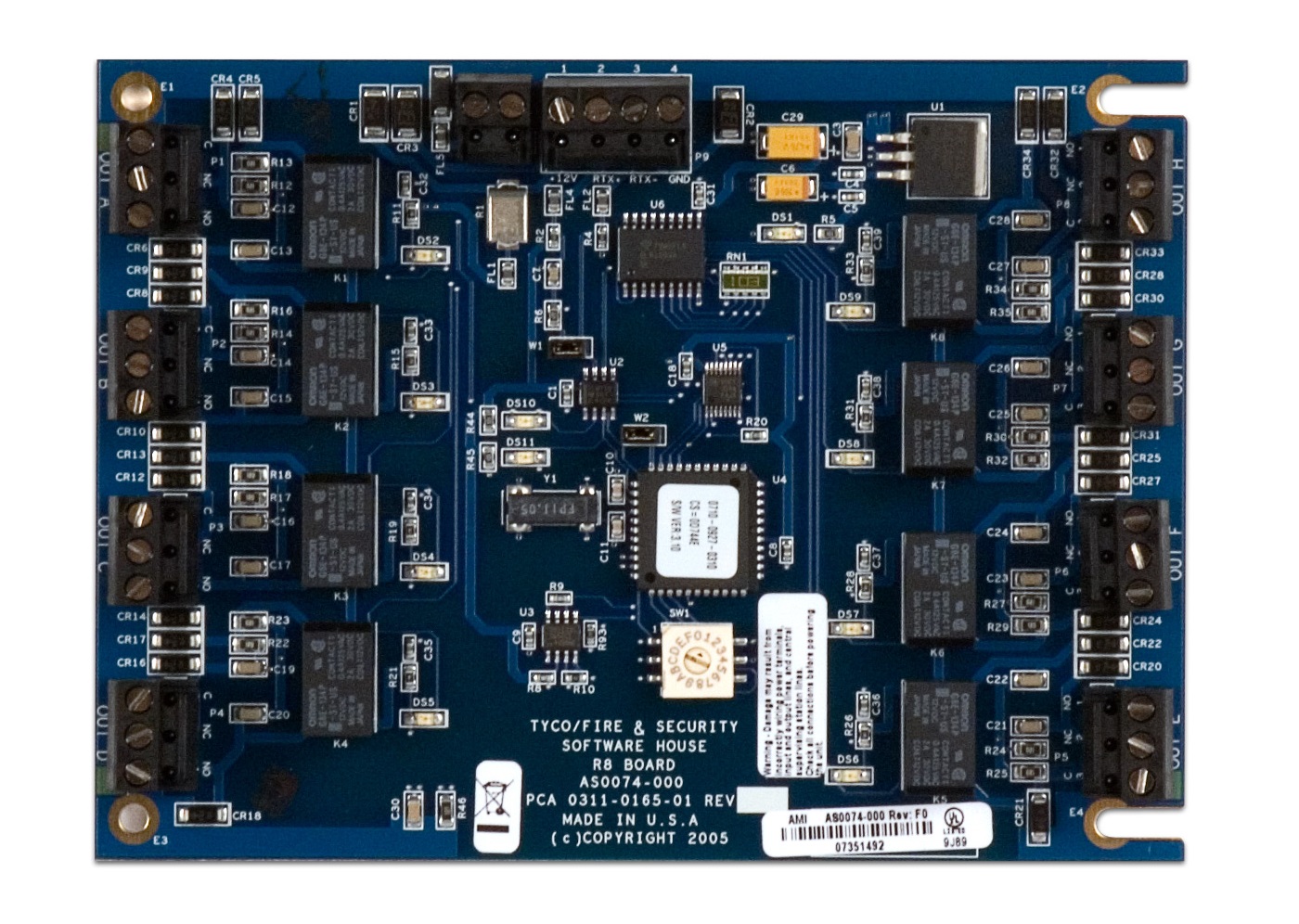

- R8 provides eight Form C relay outputs

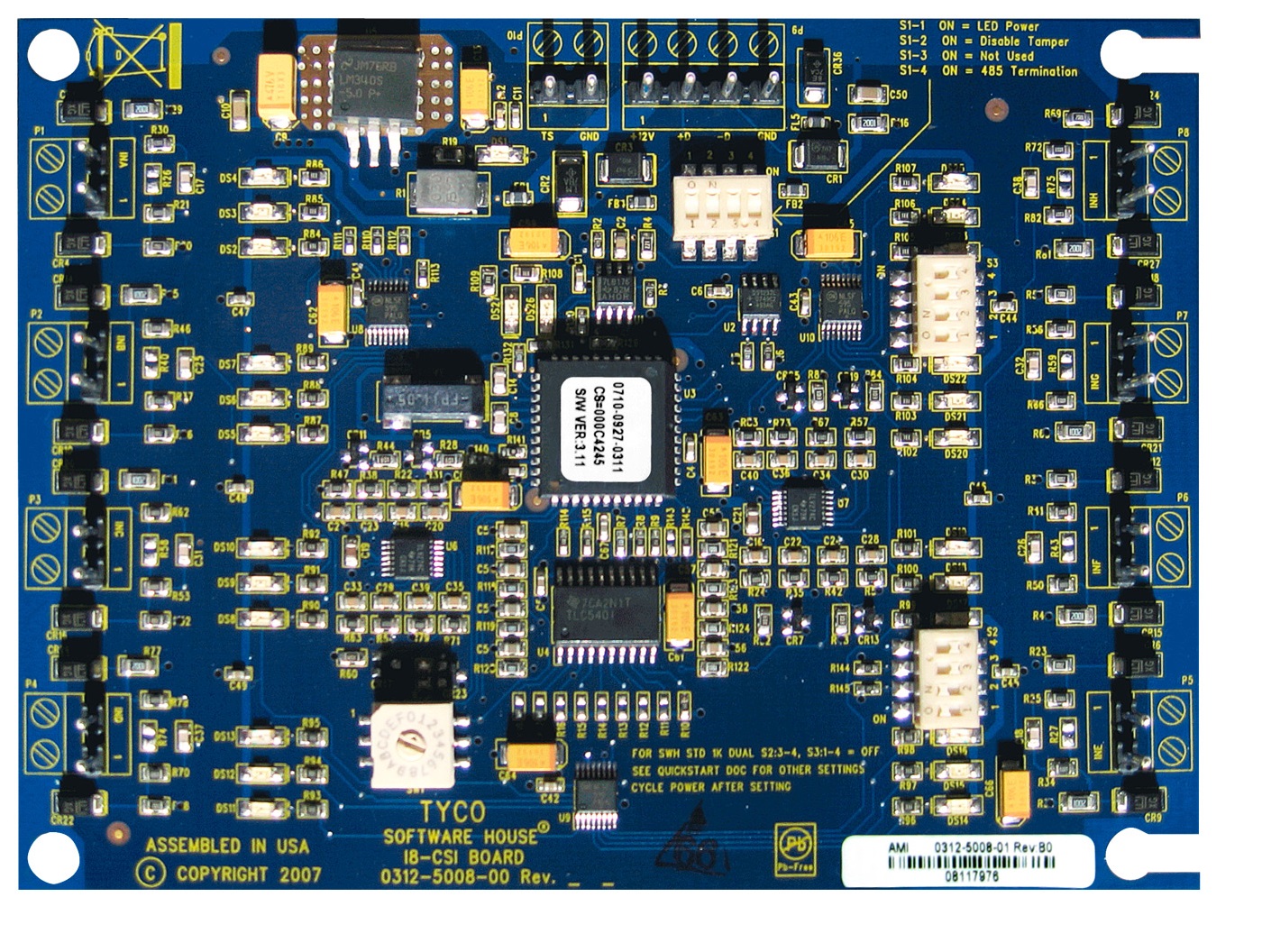

- I8-CSI, configurable supervised input model, allows use of existing input wiring without changing end-of-line (EOL) resistors
- Three status LEDs per input (red/yellow/green) and one per output enable quick diagnostics and troubleshooting
- Small, modular size requires minimal panel space
- Dedicated tamper input included on each module
- Optional UL-listed enclosure available
- Fully compatible with both C•CURE 9000 and C•CURE 800/8000
–
