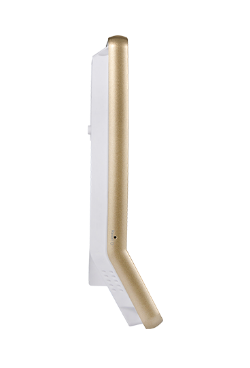

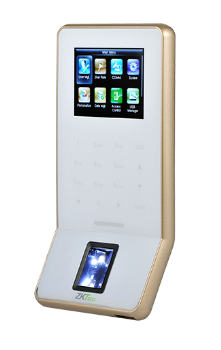

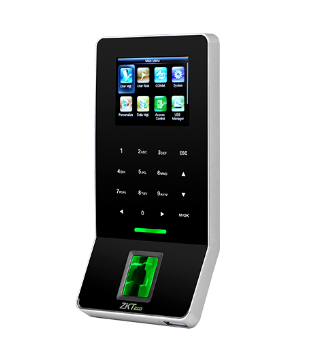

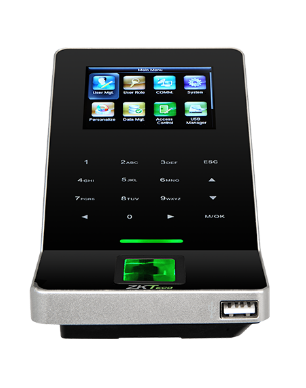

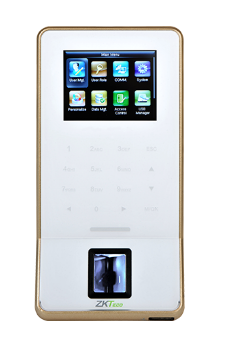

F22

Product Description

F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.

Product Highlights

60 – 90 days delivery time
50% Advance payment required
Full Warranty Coverage
Yearly Service Level Agreement

Technical Details

Features

Network interface by TCP/IP or RS485

Full Access Control Features

Multiple Verification Modes

2.4-inch TFT color screen and Touch keys

Standard Wi-Fi

Parameter

Display	2.4-inch TFT LCD Color Screen
Fingerprint Capacity	3,000
Card Capacity	5000(Optional) ID or IC card
Transaction Capacity	30,000
Sensor	BioID Sensor/ SilkID Sensor (optional)
Algorithm Version	ZKFinger VX10.0
Communication	RS232/485, TCP/IP, USB-host,Wi-Fi

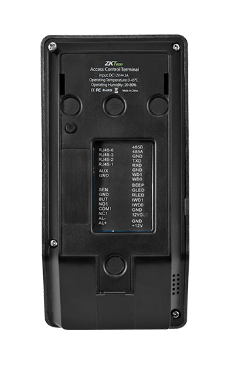

Access Control Interface	3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal	Input, Output
Aux. Input	1ea for linkage function
Functions	DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional)
Power Supply	12V DC,3A
Operating Temperature	0 ℃– 45℃
Operating Humidity	20%-80%
Dimension(LxWxH)	158.5×78.0x19.4mm
SDK and software	PUSH AC SDK, ZKBio Access
